This tutorial provides a step-by-step guide on preparing and using the Xhorse Key Cutting Machine for adding keys and handling all key lost scenarios for HU162T 8-cut, 9-cut, and 10-cut keys. This guide applies to machines like Dolphin XP005L, Condor XC-MINI Plus II, and others.
1.Distinguishing HU162T Key Types
- HU162T 8-Cut:
Features: 1 fixed side cut, straight profile.
Effective Surface: Top.
- HU162T 9-Cut:
Features: 3 side cuts.
Effective Surface: Top.
- HU162T 10-Cut:
Features: 4 side cuts.
Effective Surface: Bottom.
2.Operation Guide
- HU162T 8-Cut Add Key
Open the Xhorse APP
Navigate: Cut by Bitting > HU162T > Silca – HU162T > 8-1 Bitting
Follow on-screen prompts to position the original key on the clamp.
Click “Decode Key”.
Select the A-axis or B-axis option (upper left corner).
Switch to the B-axis bitting page where the cut for the B-axis is fixed as number 1.
After decoding, proceed to cut the key.
- HU162T 8-Cut All Keys Lost
Use the 2-in-1 pick to read the key bitting or dismantle the lock to retrieve the lock plate number.
In the Xhorse APP:
Select “All Key Lost Calculation”
Input the key bitting from the 2-in-1 pick and lock plate number.
No manual conversion is needed.
Click “Calculate” > “Complete” > “Cut Key”.
- HU162T 9-Cut Add Key
Identify the B-axis as the axis with a notch.
Open the Xhorse APP:
Navigate: Cut by Bitting > HU162T > Silca – HU162T > 9-3-3 Bitting
Position the original key as prompted.
Click “Decode Key”.
After decoding, cut the key.
Tip: After decoding the A-axis bitting, the B- and C-axis bittings are automatically calculated.
- HU162T 9-Cut All Keys Lost
Use the 2-in-1 pick to read the key bitting or dismantle the lock to get the lock plate number.
Note: There are 6 front cuts and 3 side cuts in the lock. Complete bitting must be calculated in the Xhorse APP.
Open the Xhorse APP:
Navigate: Cut by Bitting > HU162T > Silca – HU162T > 9-3-3 Bitting.
Use the Missing Cut Search Function to address missing locking plates.
For “All Key Lost Calculation”, choose:
Door->Ignition or Ignition->Door, depending on the scenario
Enter bitting data from the 2-in-1 pick or lock plate number for front bitting and side bitting.
If using the 2-in-1 pick:
Navigate to Sided Bitting Calculate.
Select angles before and after opening.
Tip: Read the non-elastic side before opening and the elastic side after opening.
Once all bittings are calculated, click “Complete” and proceed to cut the key.
- HU162T 10-Cut Add Key
Identify the B-axis as the axis with a notch.
Open the Xhorse APP:
Navigate: Cut by Bitting > HU162T > Silca – HU162T > 10-4-4 Bitting
Position the original key as prompted.
Click “Decode Key”.
After decoding, cut the key.
Tip: After decoding the A-axis bitting, the B- and C-axis bittings are automatically calculated.

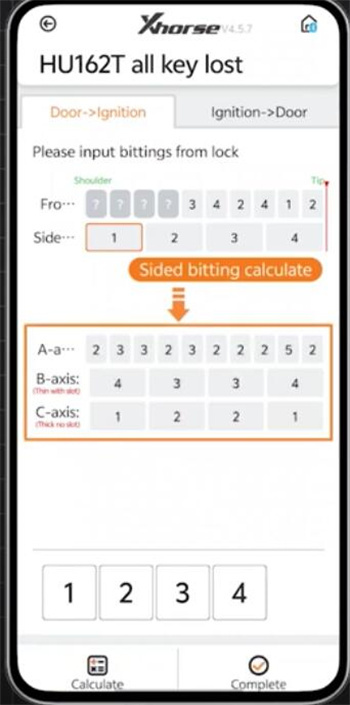

- HU162T 10-Cut All Keys Lost
Use the 2-in-1 pick to read the key bitting or dismantle the lock to get the lock plate number.
Note: There are 6 front cuts and 4 side cuts in the lock. Complete bitting must be calculated in the Xhorse app.
Open the Xhorse APP:
Navigate: Cut by Bitting > HU162T > Silca – HU162T > 10-4-4 Bitting.
Use the Missing Cut Search Function to address missing locking plates.
For “All Key Lost Calculation”, choose:
Door-> Ignition or Ignition-> Door, depending on the scenario
Enter bitting data from the 2-in-1 pick or lock plate number for front bitting and side bitting.
If using the 2-in-1 pick:
Navigate to Side Bitting Calculate.
Select angles before and after opening.
Tip: Read the non-elastic side before opening and the elastic side after opening.
Once all bittings are calculated, click “Complete” and proceed to cut the key
By following these steps, you can efficiently add new keys or handle all key lost scenarios for HU162T 8-cut, 9-cut, and 10-cut keys using the Xhorse Key Cutting Machine.
