Some customers do not know what the Read/Write Dashboard function in the VVDI MB Tool for?
Here is the detailed instruction below.

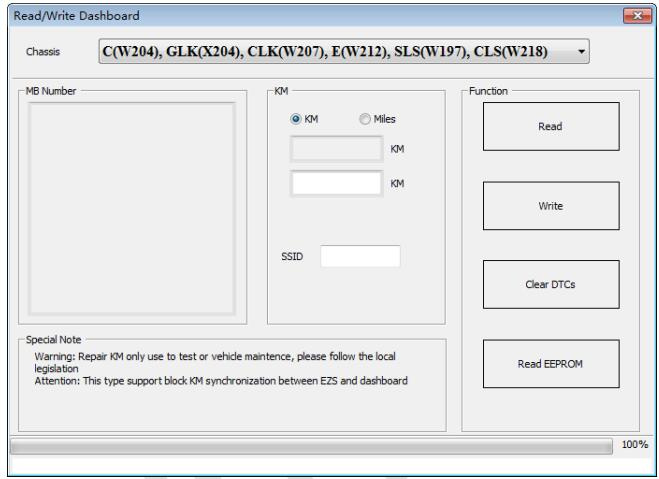

This function support to repair the dashboard KM. (Menu -> Other Function -> Read and
Write Dashboard)
Support Type:
- C (W204), GLK (X204), CLK (W207), E (W212), SLS (W197), CLS (W218)
- R-Class (W251), GL (X164), ML (W164)
- E-Class (W211), CLS (W219)
- S-Class (W221), CL (216)
- W166, W172, W246, W231
- W205
- W204, W207, W212…and S-Class (W221), CL (216):
If you want block KM synchronization between EZS and dashboard, you need to backup CGW
(Gateway) EEPROM and FLASH before write KM.
- S-Class (W221), CL (216):
Block KM synchronization requires update Gateway FLASH and EEPROM. You can provide the FLASH and EEPROM that you have. If you don’t provide these files, we will use the FALSH and EEPROM from Gateway, only need some time to read it.
- W166, W172, W246, W231 and W205:
These 2 types only support change KM in dashboard. Doesn’t support block KM synchronization between EZS and dashboard. You can install extra CAN filter yourself or erase EIS.
Warning:
This function is only used for KM repair, please follow the local legislation.
For more info, check VVDI MB Tool User Manual.
