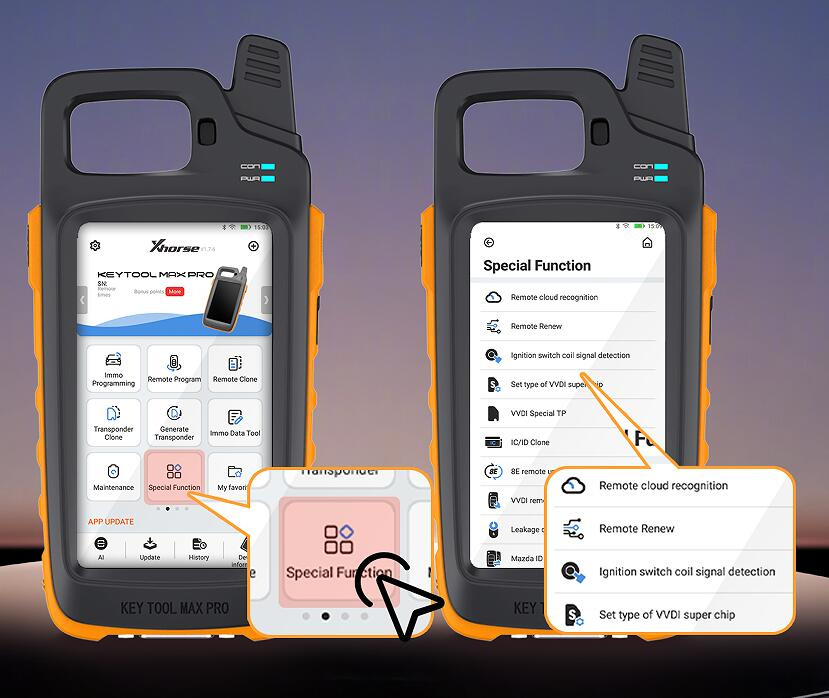

Xhorse VVDI Key Tool Plus, Key Tool Max, Max Pro and Mini Key Tool have a useful and great function on the menu. That is [Special Function]. Using this function, you can perform Remote Cloud Recognition, Remote Renew, IC/ID Clone, Ignition Switch Coil Signal Detection, Remote Charge Battery, Unlock Toyota Smart Key, Honda Cycle Key Renew, 8E Remote Upgrade/Unlock and Mazda ID49 Smart Key Light Repair.
Check the details below.
[Remote Cloud Recognition]
If you don’t know which option needs to be generated for a vehicle, you can this Remote Cloud Recognition function.
How to Identify Remote Type for Vehicle Generation with Xhorse Tool?
[Remote Renew]
Certain vehicle keys will be locked after they are programmed to the vehicle and hence cannot be generated and programmed to another car. In this case, we need to renew the remote before reusing it. This only applies to OEM keys and after renewing the remote, it becomes unlocked and can be programmed to many different vehicles.
To complete remote renew, you may need the key renew adapter or the renew cable depending on the vehicle.
To complete the remote renewal process, you may require either a key renew adapter or a renew cable, depending on the specific vehicle.
The renewal procedure is easy as follows:
Access the menu>> select the desired vehicle>> follow the system prompt to use the appropriate adapter or cable for the renewal process.
[IC/ID Clone]
IC/ID cloning allows for the replication of IC or ID cards.
It’s very simple to do. Just put the card on the coil directly, and you’re good to go.
[Ignition Switch Coil Signal Detection]
You may need to use the function in these two situations.
- You’re unsure about the type of the vehicle remote transponder. In this situation, you can put the collection antenna of the Xhorse toolclose to the ignition switch and turn the key several times. It’ll tell you it’s a 46, 48 or any other transponder type.
- Sometimes, thevehicle cannot be started with the original remote and you’re not sure the problem is in the key or the antenna coil of the vehicle. Then you also can use the method to detect where the problem is.
[Remote Charge Battery]
You can use this function for old-type BMW EWS series models with rechargeable keys. These rechargeable keys usually have a button battery inside. You can use this feature to charge the battery of the remote.
[Unlock Toyota Smart Key]
The function is the same as [Remote renew] function. But the main difference is that you don’t need to use any cable when using [Unlock Toyota smart key] function.
Just place the PCB board into the recognition slot and hit unlock. And it’ll start unlocking the key.
[Honda Cycle Key Renew]
The function is only can be used for Honda motorbikes. Just put the transponder into the coil position for reading and then you’re ready to go and unlock the Honda motorbike keys.
[8E Remote Upgrade/Unlock]
The function is mainly designed for Xhorse 8E remotes. It can upgrade and unlock Xhorse 8E remote.
[Mazda ID49 Smart Key Light Repair]
Mazda 49 key is a bit special. If the original remote is a two-button remote, you can program it with a three-button remote. But there will be a light display on the dashboard after programming successfully. In this case, you can use this function of VVDI Key Tool Plus or other Xhorse device to erase the light with the original key.
