Condor XC- Mini Plus II Cut Audi A6 HU66 Key with Xhorse Key Reader

Condor XC-Mini Plus

Written by:

How to cut a new key to Audi A6 HU66 by using Xhorse Condor XC- Mini Plus II and Key Reader?

It’s easy and fast to complete this process. Just follow this guide to do step by step.



What tools are required?

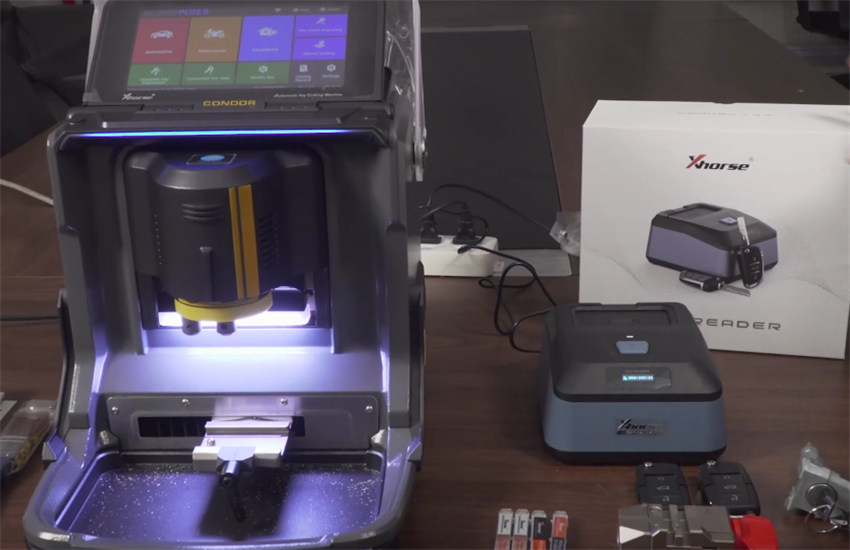

Xhorse Condor XC Mini Plus II

M5 clamp

2.5mm milling cutter

1.0mm tracer probe

Xhorse Key Reader

Original key

Blank key

Cylinder



How to do?

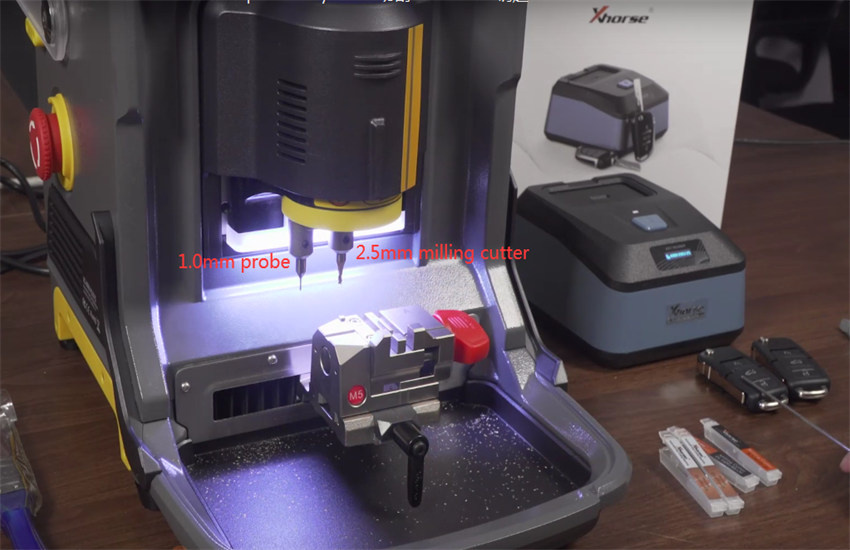

1. Install M5 clamp, milling cutter, and probe

Turn on the Key Reader and power on the XC Mini Plus 2

Install the M5 clamp and lock it on the key cutting machine

Install the 2.5mm diameter milling cutter first, and then install XCMN08EN 1.0mm Tracer Probe

Push the cutter to the top and tighten the screw

Load probe and push to top and lock



2. Connect XC Mini Plus II and Key Reader via Bluetooth

Enter Settings function on the main menu of Mini Condor

Select system settings>> Connect optical device

Turn on Bluetooth to connect with Xhorse Key Reader

Connected successfully

3. Identify the original key bitting

Back to the main menu

Enter Automotive function

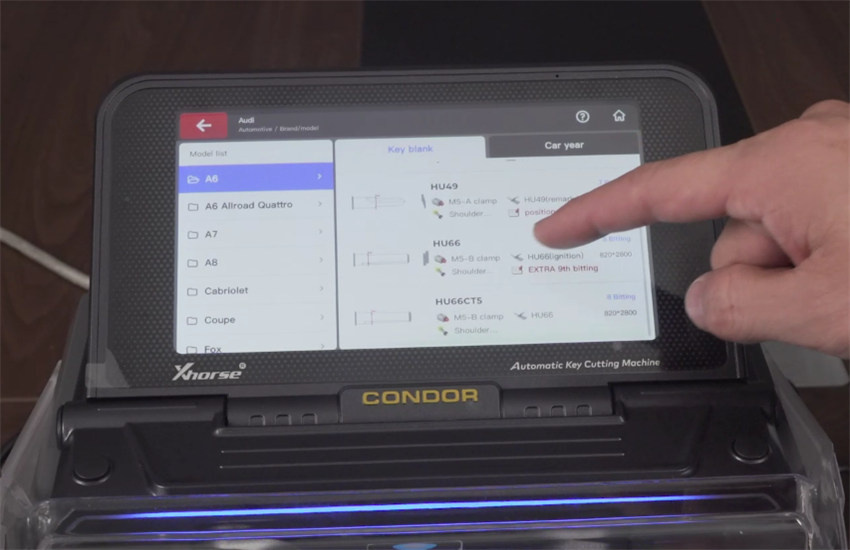

Select Europe>> Audi>> A6>> HU66 (M5-B clamp)>> Advanced cutting>> Optical Identification>> Identification

  • Put the original key into the key reader according to the figure on the screen
  • Click ‘Identification’ to start identifying key bitting information and wait for the result

Read the key bitting successfully



4. Cut new key

Put a new key blank on the clamp

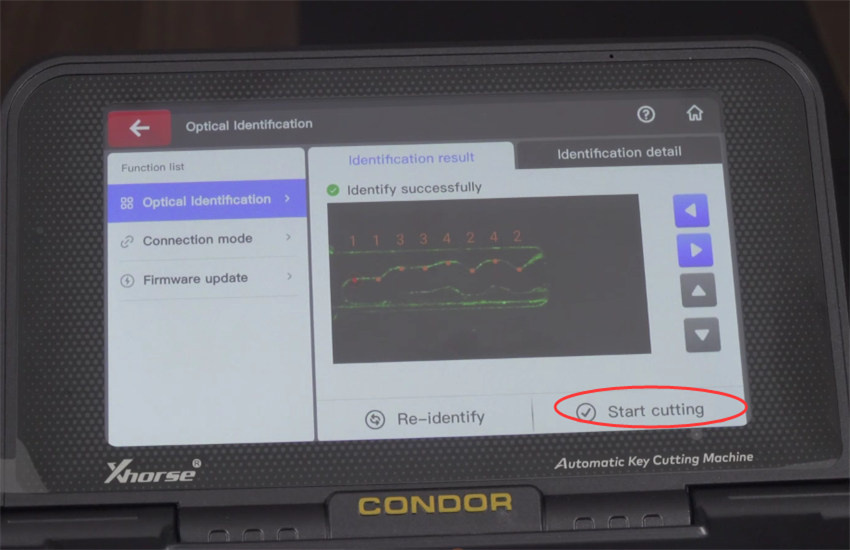

Click ‘Start cutting’ on the Identify Result interface

Then click ‘Start cutting’ on the Advanced cutting interface

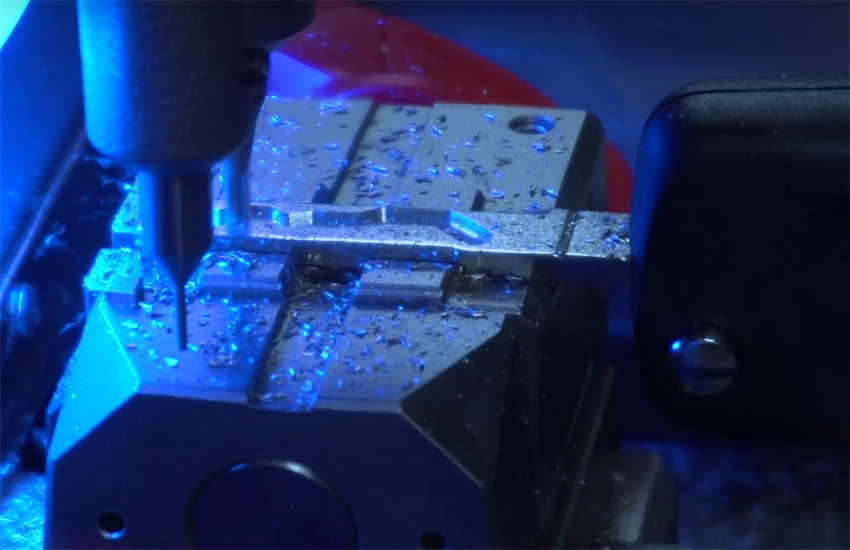

Click ‘Cut’ to perform the key cutting function

The key cutting is complete. Remove the key and clamp it on the other side

Continue cutting until the process is done

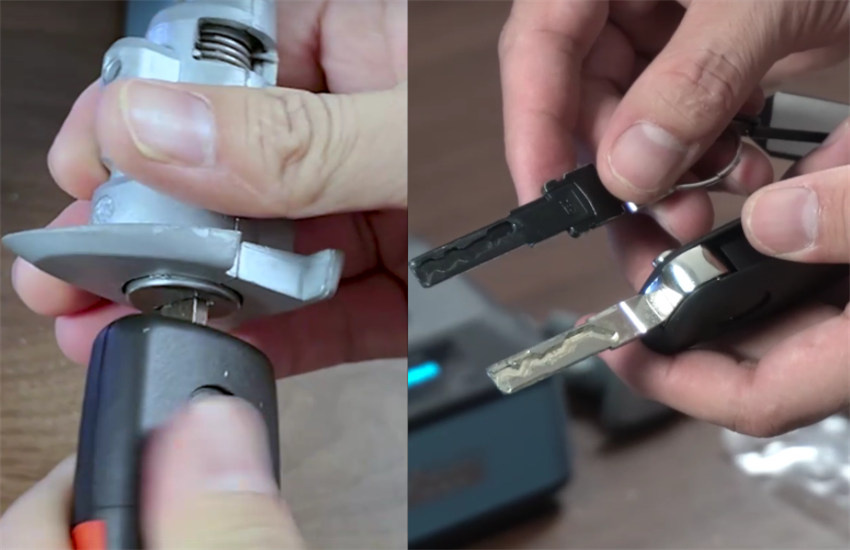

After cutting, remove the key and insert it into the cylinder to test

The key is cut perfectly, the same as the original one.
