In the previous post, we introduce how to connect Xhorse BMW BDC2 Adapter and VVDI2 programmer. (Click here to review)
Today we’ll continue to demonstrate how to uninstall this adapter easily and safely.
BMW G-Series BDC2 Module Removal Procedure:

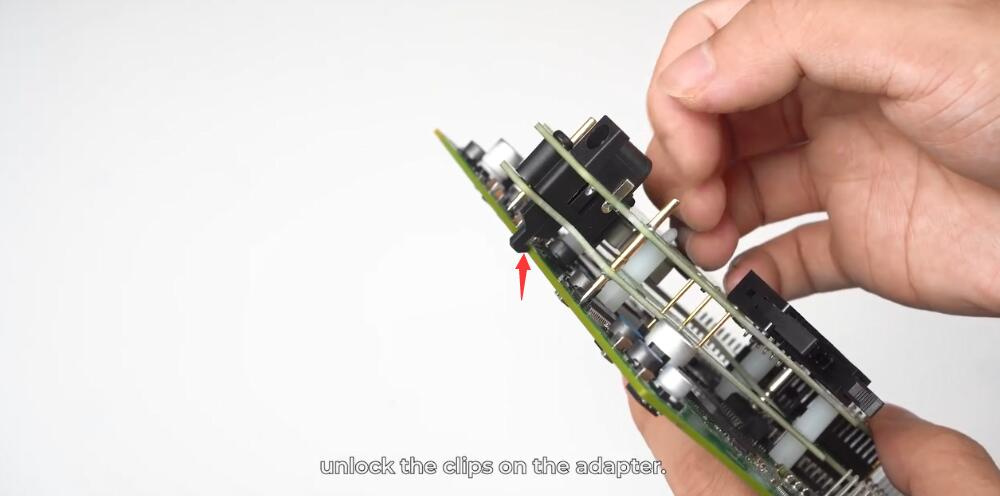

Step 1: Release the Adapter Clips
Locate and gently unlock the retention clips on the adapter.
Step 2: Prepare the Work Surface
Place the BMW G-chassis BDC module on a clean, flat, and stable surface.
Ensure the module is positioned securely before proceeding.

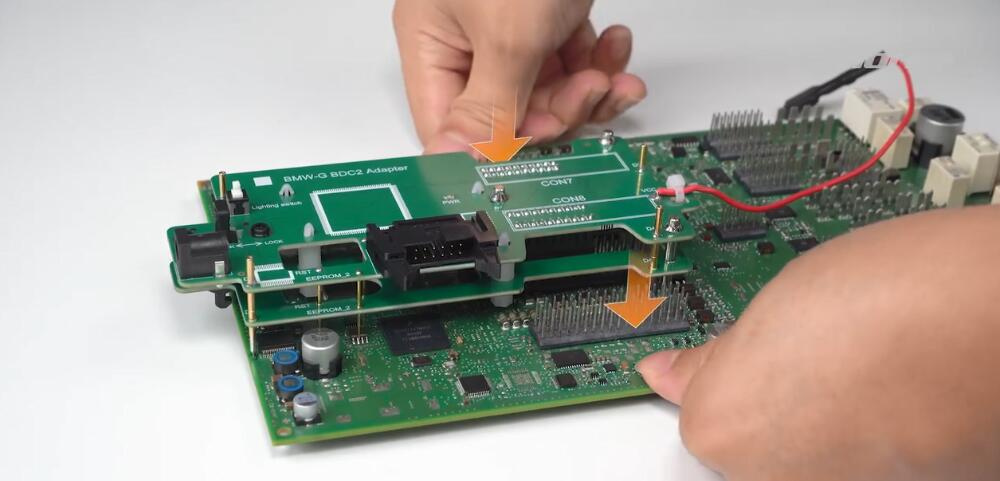

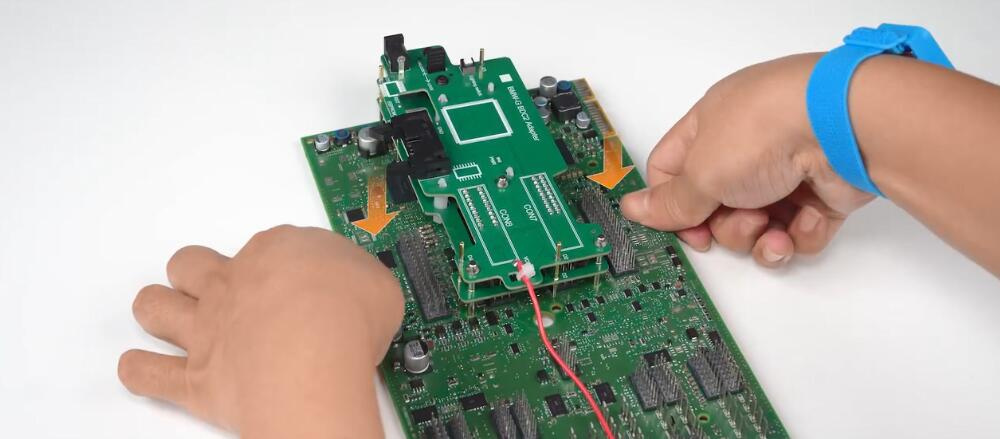

Step 3: Apply Even Pressure
Using both hands, press down evenly on both sides of the module.
Step 4: Disconnect the Pin Header
The pin header will smoothly disengage from the adapter as you apply pressure.

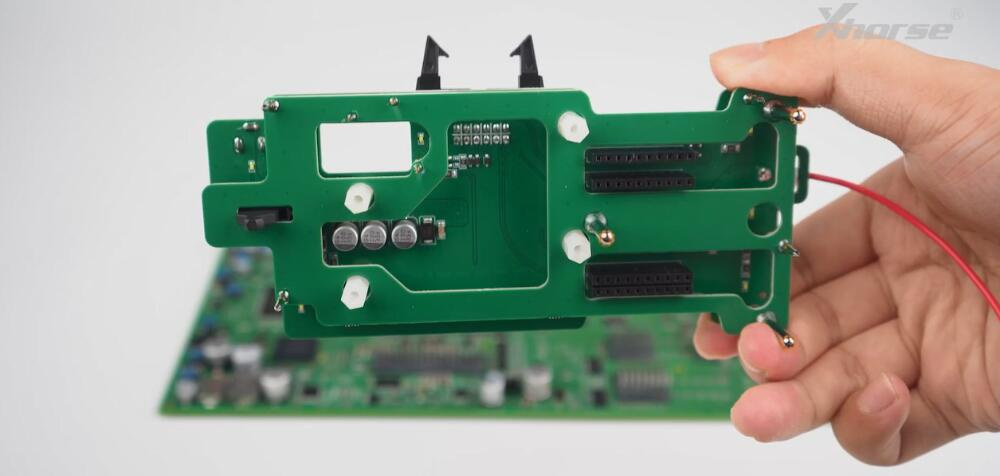

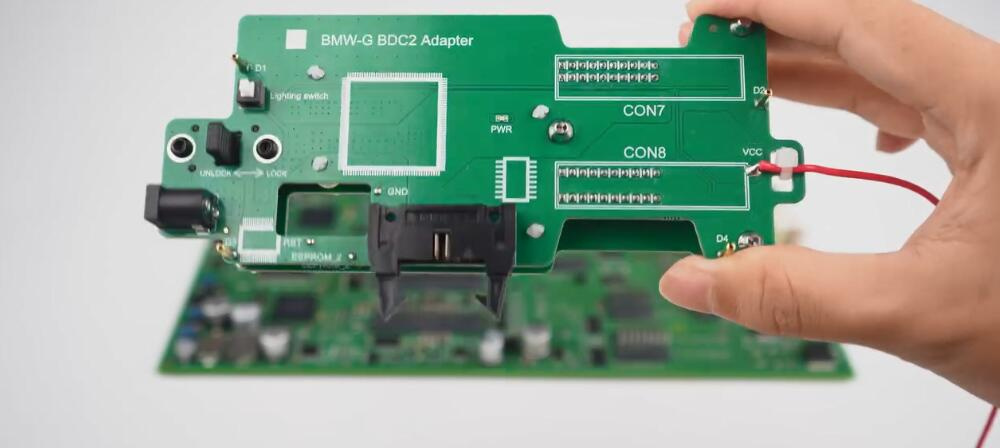

Step 5: Remove the Adapter
Lift the Xhorse BMW BDC2 Adapter straight upward in a vertical motion.
The three positioning pins will:
- Prevent bending of the pin headers
- Eliminate risk of injury from forced connections
Key Safety Notes:
- Always maintain even pressure during disconnection
- Never twist or angle the adapter during removal
- The positioning pins ensure proper alignment and safety
